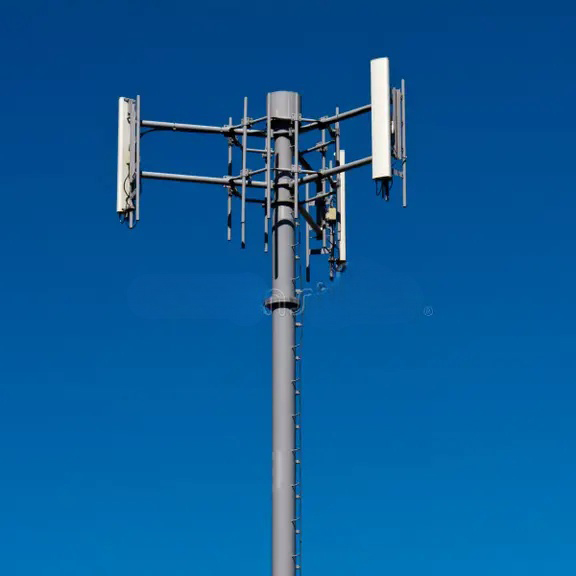

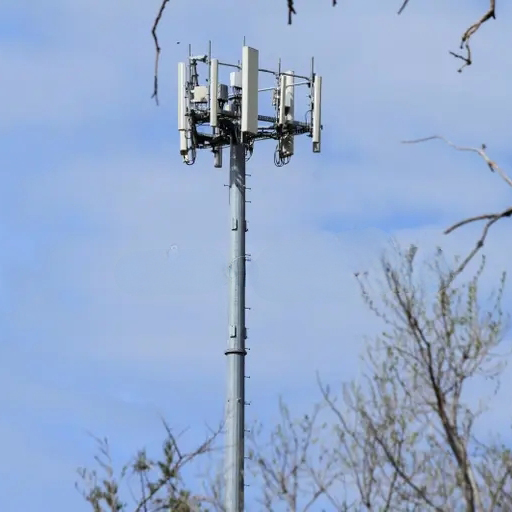

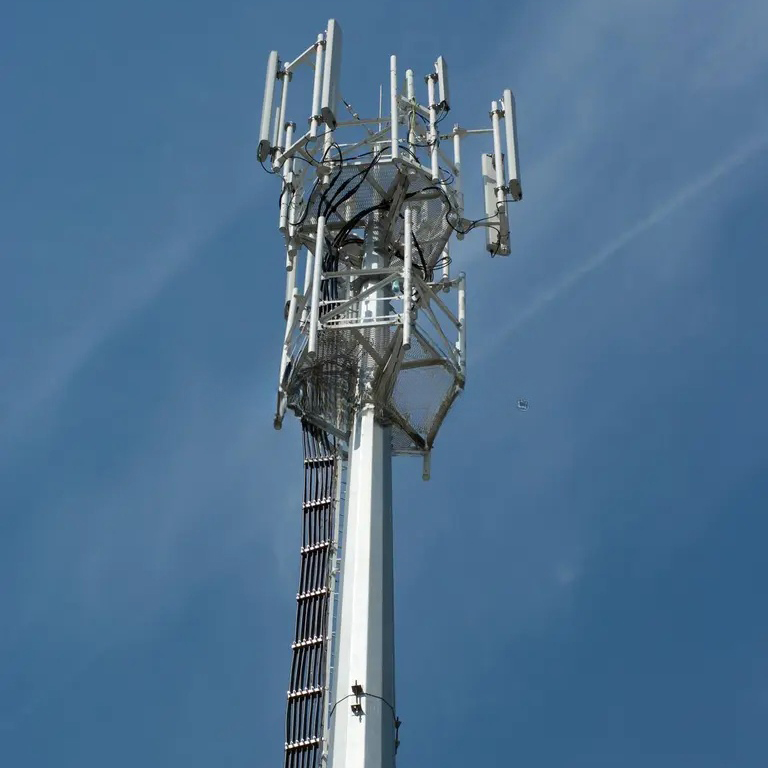

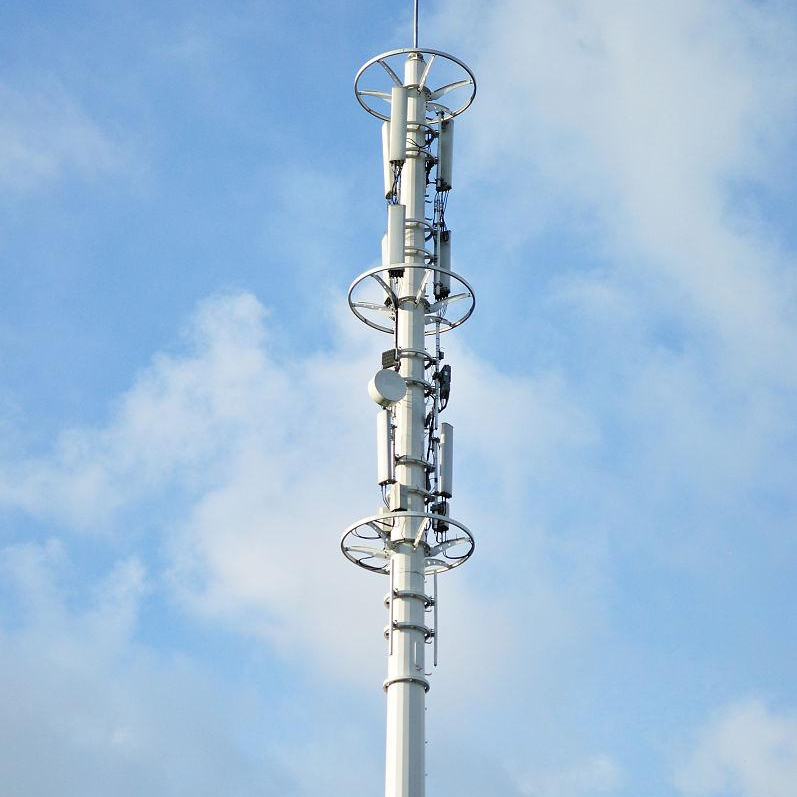

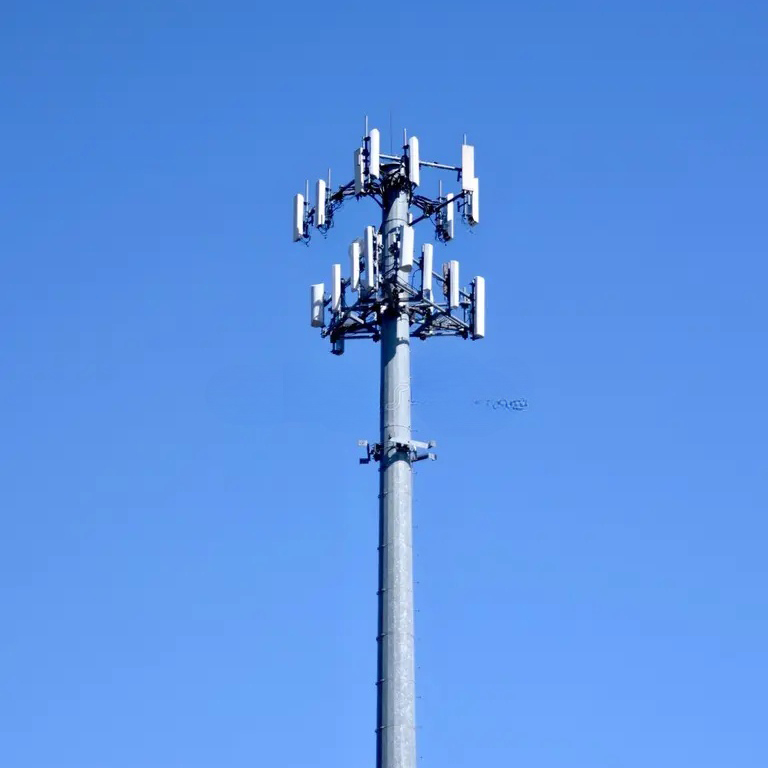

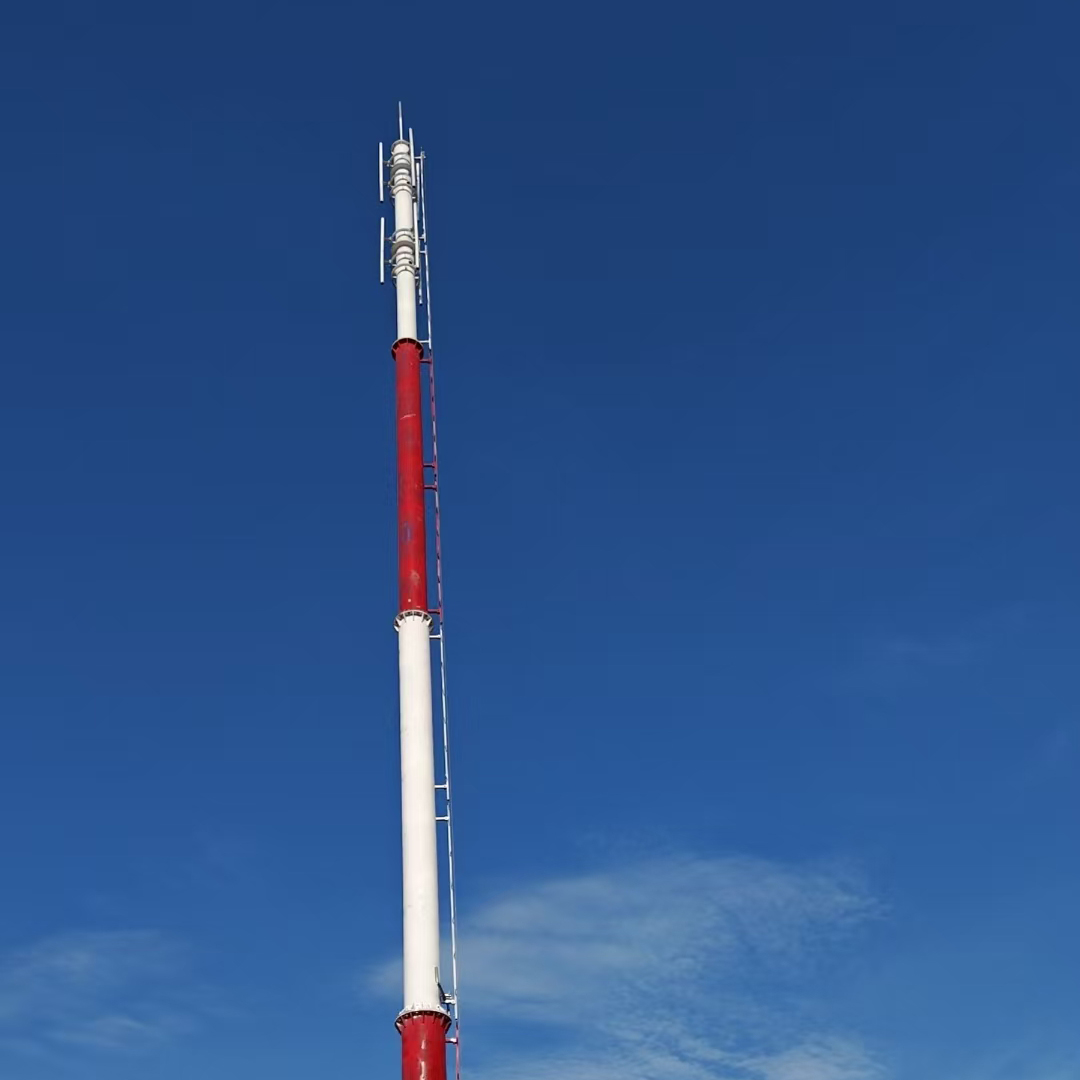

Monopole Tower is a self-supporting communication tower constructed from circular or tapered steel tubes. With its simple structure and small footprint, it is widely used for mobile communication, microwave transmission, surveillance systems, and private communication networks.
Our towers are manufactured using high-quality Q235/Q355 steel, processed through CNC cutting, automatic welding, and hot-dip galvanizing to ensure high strength, long service life, and excellent corrosion resistance.
1. Simple structure and small footprint, ideal for urban areas with limited space.
2. Segmented flange connection enables fast and convenient on-site installation.
3. Excellent wind resistance due to reduced windward surface.
4. Superior corrosion resistance with hot-dip galvanizing (≥80μm), lifespan over 25 years.
5. Fully customizable: tower height, platforms, brackets, ladders, safety cage, etc.
Item | Specification |
Type | /Monopole Tower |
Height | 12m–40m（ Customizable） |
Material | Q235 / Q355 |
Structure | Segmented circular tube structure with flange connection |
Wind Speed | 30–55 m/s(As per project requirements) |
Vertical Load | 200–1000 kg(Customizable) |
Anti-corrosion | Hot-dip galvanized |
Accessories | Antenna brackets, platforms, ladders, safety cages, lightning rods, etc. |
Service Life | ≥ 25 years |
1. Streamlined appearance suitable for urban and commercial areas.
2. Segmented design fits into containers or flatbed trucks.
3. Closed tubular design prevents dust and water accumulation.
4. Less steel consumption compared with angle steel towers.
5. Supports various antennas, microwave dishes, and monitoring equipment.
Mobile communication base stations (4G/5G)
Microwave transmission sites
Urban road surveillance
Industrial parks, campuses, community monitoring
Private networks and emergency communication
Water conservancy, power, and wind farm monitoring
Port and airport communication facilities
