Four-Leg Angle Steel Telecom Tower: A Reliable Solution for Multi-Antenna Communication Sites

Four-Leg Angle Steel Telecom Tower: A Reliable Solution for Multi-Antenna Communication Sites

As communication networks continue to expand, telecom sites often need to support multiple sector antennas, microwave dishes, platforms, cable systems, and other communication equipment. In these projects, structural stability, equipment loading capacity, and flexibility for future expansion are important considerations when selecting a tower solution.

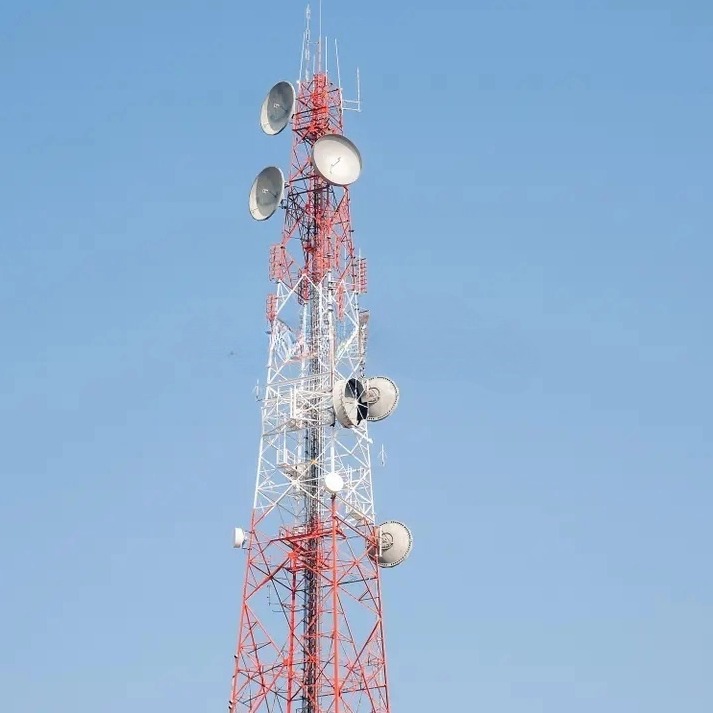

The four-leg angle steel telecom tower is one of the most widely used self-supporting lattice structures for communication infrastructure. Its four main legs are connected by horizontal and diagonal bracing members to form a stable three-dimensional lattice structure.

This configuration allows the tower to be designed according to different heights, wind conditions, antenna arrangements, and project requirements.

Why Choose a Four-Leg Angle Steel Telecom Tower?

Compared with a compact monopole structure, a four-leg lattice tower provides more structural and installation space for communication equipment.

Different levels of the tower can be configured with antenna brackets, working platforms, microwave dish supports, cable ladders, and other accessories according to the site requirements.

Four-leg angle steel telecom towers are particularly suitable for projects that require:

• Multiple sector antennas

• Microwave transmission equipment

• Several antenna installation levels

• Working or maintenance platforms

• Multiple telecom operators sharing one tower

• Additional space for future equipment expansion

The final tower configuration should always be determined according to the actual loading conditions and structural design requirements of the project.

Stable Four-Leg Lattice Structure

The main load-bearing structure consists of four steel legs connected by horizontal and diagonal members.

The tower normally tapers gradually from the bottom toward the top. This structural arrangement helps transfer loads through the lattice framework while providing the stability required for outdoor telecom installations.

According to the project, key structural parameters can be customized, including:

• Tower height

• Base width

• Section length

• Main leg dimensions

• Bracing member dimensions

• Platform arrangement

• Antenna support configuration

For this reason, a four-leg angle steel tower should not simply be treated as a fixed standard product. Its structural configuration needs to match the actual conditions of each communication project.

Antenna and Telecom Equipment Configuration

For a telecom tower project, the tower structure and antenna arrangement need to be considered together.

A four-leg angle steel tower can be designed to accommodate different types of communication equipment, such as:

• Sector antennas

• Microwave dishes

• Antenna mounting brackets

• Working platforms

• Cable ladders

• Feeder and cable systems

• Lightning protection systems

The quantity, size, installation height, and position of the antennas all affect the structural design of the tower.

Therefore, accurate antenna information is important before the final tower design is confirmed.

What Information Is Needed Before Tower Design?

Before designing a four-leg angle steel telecom tower, several project parameters should normally be confirmed.

These include:

Tower Height
The required overall height of the tower.

Design Wind Speed
The wind condition that the tower needs to withstand according to the project location and applicable design requirements.

Antenna Quantity
The total number of sector antennas, microwave dishes, and other equipment to be installed.

Antenna Dimensions
The size and projected area of the antenna equipment.

Antenna Installation Height
The required mounting level of each antenna or microwave dish.

Platform Requirements
The number, size, and installation height of working or maintenance platforms.

Project Location
The country or region where the tower will be installed.

Applicable Design Standard
The structural standard or customer specification required for the project.

With this information, the tower dimensions and structural configuration can be evaluated more accurately.

Hot-Dip Galvanized Steel Structure

Telecom towers are normally installed outdoors for long-term operation and are exposed to rain, humidity, wind, and other environmental conditions.

After fabrication, steel components can be hot-dip galvanized to improve corrosion resistance and provide protection for long-term outdoor service.

Angle steel members, connection plates, and other structural components are processed according to the project drawings before galvanizing and final inspection.

From Design to Manufacturing

Once the project parameters and structural design are confirmed, the manufacturing process generally includes:

Structural Design → Material Preparation → Cutting and Punching → Component Fabrication → Trial Assembly → Hot-Dip Galvanizing → Quality Inspection → Packing and Shipment

For angle steel towers, hole positioning accuracy, component identification, and connection dimensions are particularly important because these factors directly affect site assembly.

Careful manufacturing and inspection help ensure that tower sections and steel members can be assembled according to the approved drawings.

Customized for Different Telecom Projects

Different countries, telecom operators, and installation sites may have different requirements for tower height, wind loading, antenna configuration, and structural standards.

Therefore, the most suitable four-leg angle steel tower should be designed according to the actual project conditions rather than relying only on a fixed tower model.

Hebei Yunta Metal Components Co., Ltd. provides customized four-leg angle steel telecom tower solutions based on customer project requirements.

Tower height, base width, structural sections, antenna supports, platforms, and other components can be configured according to the specific application.

For a new telecom tower project, customers can provide the following basic information:

Tower Height + Design Wind Speed + Antenna Loading + Antenna Installation Height + Project Location

Based on these parameters, the tower structure and project solution can be further evaluated and confirmed.
